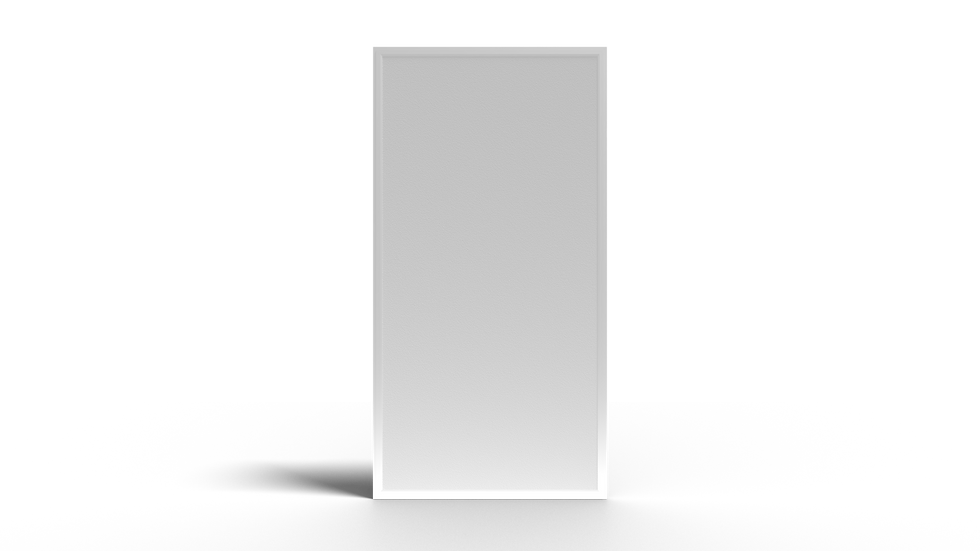

Watt-Selectable Flat Panel (2x2, 1x4, 2x4)
LED drop-ceiling flat panel light fixtures featuring our patented watt selectable control system, and some of the highest efficacies available for flat-panel lighting. It eliminates the risk of purchasing & installing the incorrect fixture wattage or light output. Should more, or less, illumination be desired, simply adjust the fixture for the correct power/light level. These are the only flat panel lights available that allows for maximizing savings and optimizing of the ROI. Light is clean and uniform throughout the entire fixture It can be used as a direct replacement of existing fluorescent troffer lights, or for new construction installation. They are universal voltage input (120-277vac), and are housed in a thin profile, sturdy structure assuring easy installation and are excelent when extra clearance is required due to HVAC, pipes, and beams that interfere with mounting depth. The perfect troffer solution!
Model
IAP14-XXX00-040
IAP22-XXX00-040
IAP24-XXX00-060
Wattage
10-40
10-40
20-60
Voltage
120-277
120-277
120-277
Color
(CCT)
4000K 5000K
4000K 5000K
4000K 5000K
LpW
131
130
130
Lumens
@4000K
1310-5240
1304-5216
2608-7824
PF
0.92
0.92
0.92
THD
0.12
0.12
0.12
CRI
82
82
82
Size
(Inches)
11.75 x 47.75 x .5
23.75 x 23.75 x .5
23.75 x 47.75 x .5
Lifespan
(Hours)
50,000+
50,000+
50,000+
Safety
UL
UL
UL
DLC
✓
✓
✓
Wattage and output can be set /reset to achieve desired power/light level
Sturdy construction, aluminum body & PC/PMMA lens
Maximizes Return on Investment (ROI)
Multiple mounting options
Generates very little heat and, no UV/IR radiation or hazardous mercury
Works with 0-10 & 1-10V dimmers and (most) sensors
Reduces energy cost up to 80%
